CNC Gantry Milling

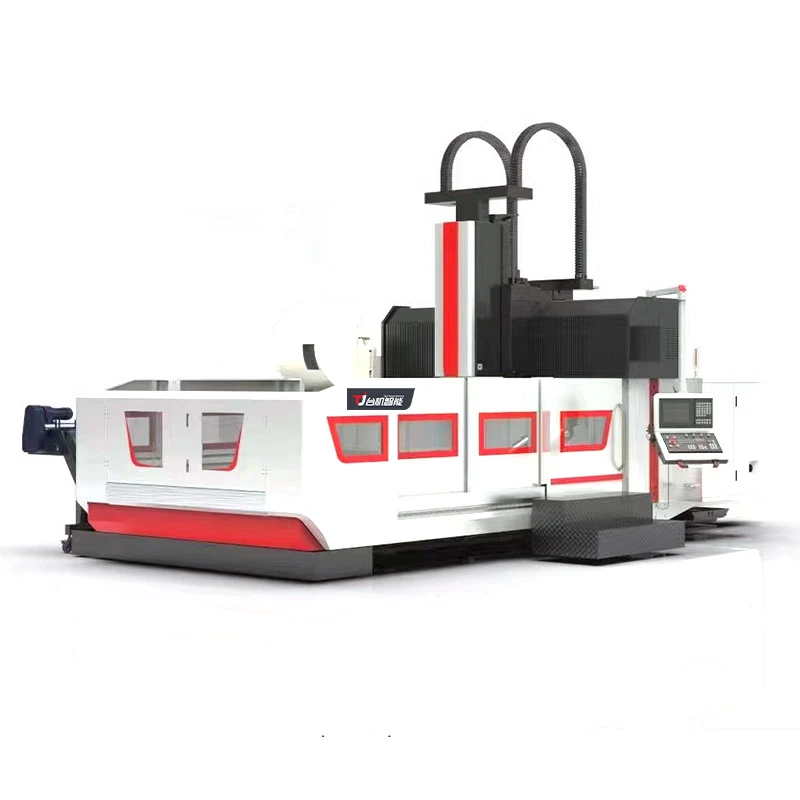

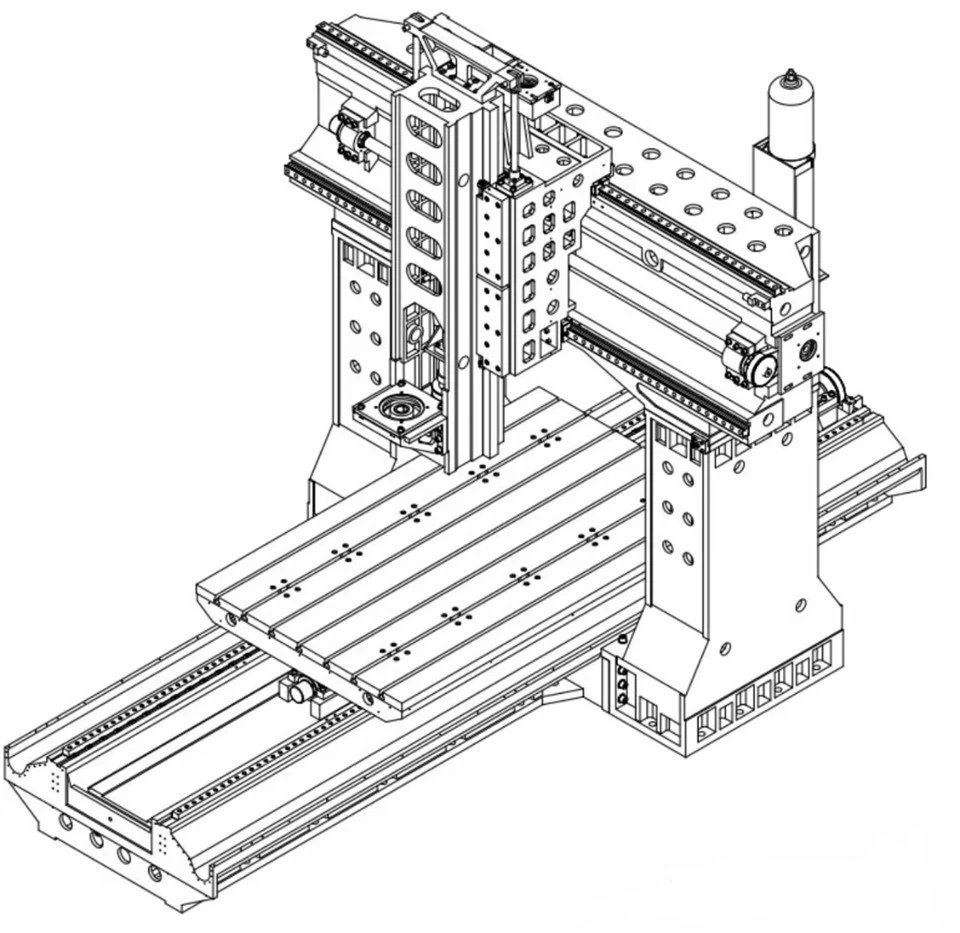

The TJ-M2518 CNC Gantry Milling is a medium-to-large CNC Gantry Milling launched by Guangdong Taiji Intelligent Co., Ltd. for high-precision heavy cutting of ultra-large parts. As a CNC Gantry Milling, it features a large 2600×1600mm worktable and a 2500mm X-axis travel, easily handling the machining challenges of energy equipment, ship components, and heavy machinery structural parts. The box-type crossbeam, combined with a double-layer rib reinforcement structure, doubles the crossbeam rigidity, enhancing the durability of mechanical precision and the stability of machining accuracy. Adhering to Guangdong Taiji's "precision manufacturing" philosophy, the TJ-M2518 also optimizes the accessibility of the operating table based on optimal ergonomics.

The significant core advantages of the TJ-M2518 CNC Gantry Milling are mainly fourfold: First, it is fast, with rapid X/Y/Z axis traverses reaching 12, 12, and 10 m/min respectively, and a cutting feed rate of up to 10,000 mm. With its high speed and excellent vibration control even at high speeds, this machine significantly shortens the machining cycle of large parts. Secondly, it is precise, employing high-precision linear guides, precision ball screws, and an advanced servo system. The X/Y axes are equipped with 55mm wide heavy-duty roller guides, while the Z-axis uses a high-rigidity rectangular slide rail, maintaining high torque and high precision output over long periods, sufficient to meet the stringent tolerance requirements of the energy, shipbuilding, and other fields. Thirdly, it is stable, with a 2600×1600mm worktable and a maximum load capacity of 4 tons. Combined with an ultra-wide column and beam structure, it effectively suppresses vibration even during heavy cutting, ensuring machining stability. Fourthly, it is versatile, equipped with a standard 22kW spindle, with optional gear heads, supporting milling, drilling, boring, tapping, and other composite machining operations. It is compatible with steel, cast iron, aluminum alloys, copper, and composite materials, completing multiple processes in a single setup, resulting in high equipment utilization. In short, this machine integrates efficiency, precision, load capacity, and multifunctionality, making it a reliable choice for your large parts mass production.

The TJ-M2518 CNC Gantry Milling is primarily designed for heavy-duty component manufacturing in three main sectors: In the energy equipment sector, it can process key components such as wind turbine hub bearing housings, wind turbine flanges (1000-2000mm), gas turbine housings, and nuclear power pressure vessel flanges, completing multi-process composite machining of milling, boring, and drilling in a single setup;

in the shipbuilding sector, it is capable of mass production of large structural components such as marine engine cylinder blocks, rudder systems, and propeller supports (1500-2500mm);

The TJ-M2518 CNC Gantry Milling employs an automatic chip conveyor, enabling convenient waste disposal and ensuring machine cleanliness. The bed base is equipped with an automatic flushing system. The compact internal space combined with the automatic chip conveyor system minimizes the labor intensity of manual waste cleaning, reducing labor costs. Multi-stage precision filtration of the air source helps improve the performance and lifespan of precision components such as the spindle linear encoder.

We understand that behind every machine tool lies your continuous pursuit of efficiency, precision, and stability. Therefore, Guangdong Taiji not only provides equipment but also strives to be your partner in overcoming machining challenges. Based on our practical experience in energy equipment, shipbuilding, heavy machinery, and automotive molds, we can provide deeply customized solutions, from spindle selection to automation integration, tailored to your material characteristics, process bottlenecks, and production capacity planning. Once the equipment is operational, our global rapid response network will safeguard your production rhythm and minimize the impact of unexpected downtime. Choosing the TJ-M2518 CNC Gantry Milling is not only about acquiring a powerful heavy-duty cutting tool, but also about finding a partner who understands the industry, takes responsibility, and can work alongside you long-term.
