VMC CNC Milling Machine

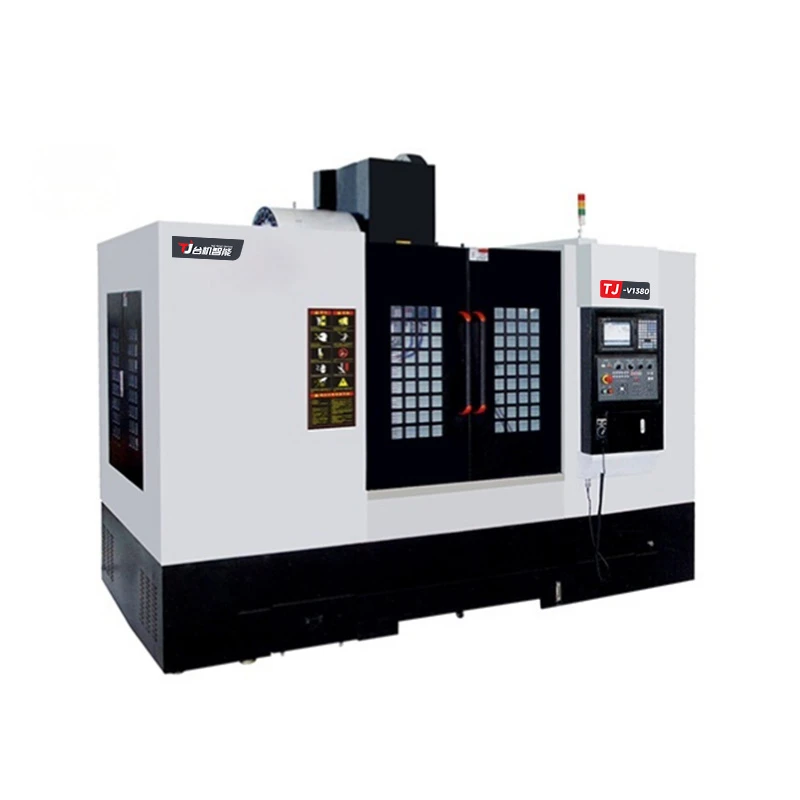

The V1380 VMC CNC Milling Machine is the flagship product of Guangdong Taiji's vertical machining center series, designed for high-precision machining of ultra-large and complex parts. As a VMC CNC Milling Machine, it boasts a 1300mm X-axis travel and an 800mm Y-axis travel, easily accommodating molds, aerospace structural components, and heavy machinery parts. All three axes are equipped with precision linear guides and C3+ grade ball screws, ensuring fast traverse speeds, high positioning accuracy, and significant advantages in batch production efficiency. The spindle comes standard with a high-power motor, providing ample torque to handle everything from high-speed cutting of aluminum alloys to heavy roughing of mold steel. If you need to machine large molds, aerospace structural components, or heavy machinery parts, the V1380 can be used directly without repeated adjustments.

1. Large Machining Range and Stable Structure

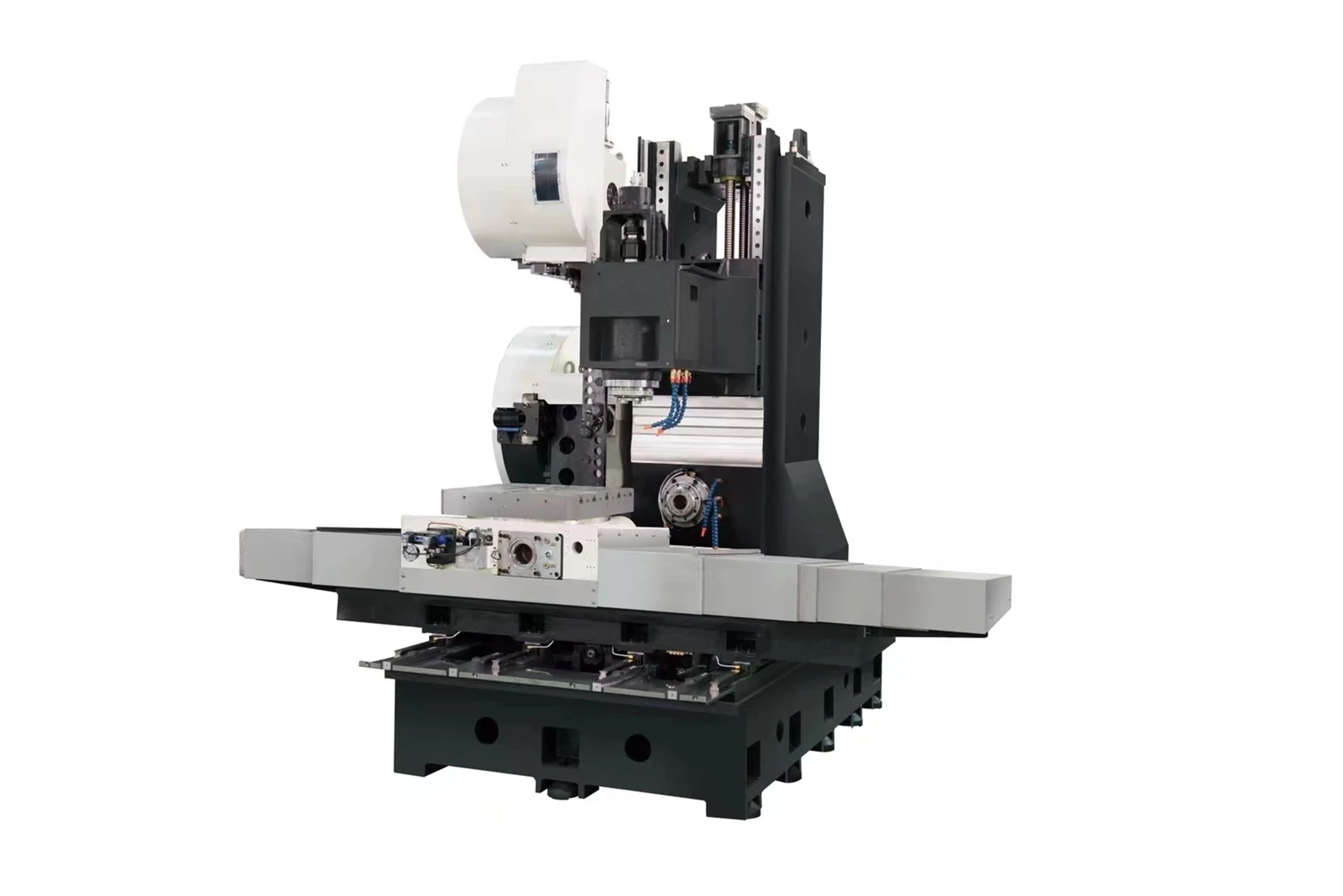

X-axis travel 1300mm, Y-axis 800mm, Z-axis 650mm, worktable load capacity 1000kg. This means that molds, aerospace structural components, and heavy machinery bases can be directly mounted on the machine without disassembly or multiple clamping operations. The T-slot layout has been optimized for flexible fixture arrangement. Combined with an extra-wide base and V-shaped column, the machine tool remains stable with minimal vibration during high-speed movement and heavy cutting, making it suitable for long-term continuous operation.

2. Core Components from Leading International Brands

Key components such as guideways, lead screws, spindles, and bearings are all sourced from internationally renowned leading brands, ensuring that accuracy does not degrade over long-term use. The extra-wide base design not only improves support rigidity but also effectively suppresses cutting vibration, helping to guarantee the surface quality and dimensional accuracy of large parts.

3. Flexible Spindle Configuration, Capable of Machining Both Hard and Soft Materials

The standard configuration includes an 11/15kW spindle with ample torque. Options include a 12000rpm direct-drive spindle, a BT40 gear head spindle, or a BT50 heavy-duty cutting spindle, capable of handling everything from high-speed cutting of aluminum alloys to heavy cutting of mold steel. The distance from the spindle center to the guideway surface is rationally designed for easy clamping of large parts and tool access.

4. Rapid Traverse, High Efficiency in Mass Production

The three axes utilize precision linear guides and high-precision ball screws, resulting in fast response and excellent dynamic performance. Optimized rapid traverse speeds effectively shorten non-cutting time, offering significant efficiency advantages in mass production. Simultaneously, stable positioning accuracy and repeatability reduce scrap and rework, protecting your production costs.

The V1380 VMC CNC Milling Machine is suitable for machining the following types of parts:

Aerospace: Aircraft wing spars, engine casing connectors, etc., typically within 1000mm in size. Multi-face milling and drilling can be completed in a single setup, ensuring consistency and surface quality of complex surfaces.

Energy Equipment: Wind turbine hub bearing housings, gas turbine casing flanges, etc., typically 800-1200mm in size. The high-rigidity structure allows for stable removal of large amounts of material, ensuring dimensional accuracy and machining efficiency.
