5-Axis CNC Machining Center

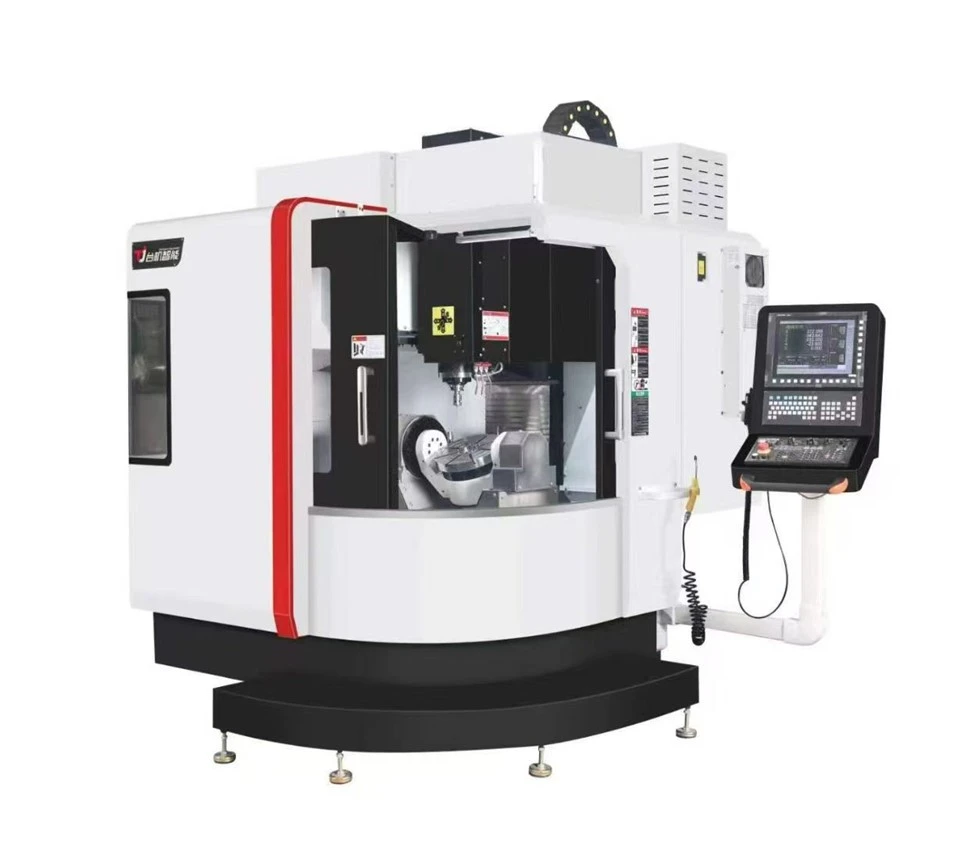

The TJ-UV380, a 5-Axis CNC Machining Center from Guangdong Taiji, is specifically developed for high-precision machining of small to medium-sized complex parts. This model employs an advanced five-axis linkage structure, significantly reducing the number of workpiece clamping operations and fundamentally eliminating repeatability errors. It is particularly suitable for machining complex curved surfaces in precision molds, medical devices, and aerospace precision components. Adhering to our "precision manufacturing" philosophy, the TJ-UV380 perfectly integrates ultra-high precision, high efficiency, and high rigidity.

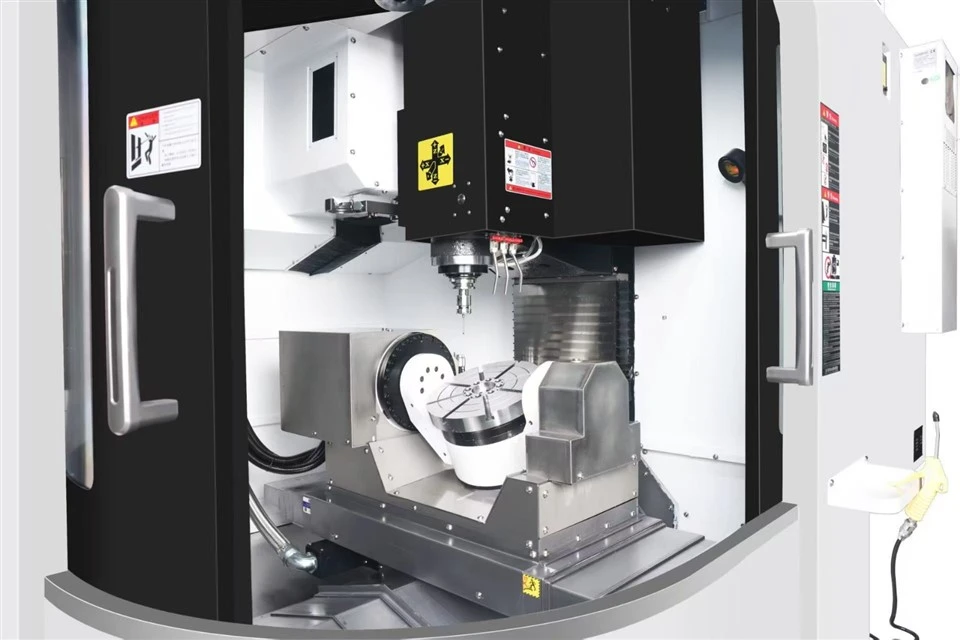

The TJ-UV380 not only boasts ultra-high machining precision but also utilizes a five-axis linkage structure to complete multi-faceted machining in a single setup, completely eliminating repetitive positioning errors. It can also be equipped with a high-precision angle encoder and a fully closed-loop feedback system, achieving micron-level positioning accuracy to meet the stringent tolerance requirements of aerospace components and precision molds. Furthermore, it efficiently integrates machining processes, supporting multiple operations such as milling, drilling, boring, and tapping in a single operation without frequent clamping changes, significantly shortening production cycles and greatly improving batch production efficiency.

The TJ-UV380 employs a high-rigidity bed and precision roller linear guides, combined with C3+ grade ball screw drives, ensuring long-term precision stability. Its compact structure provides a wide machining range and flexible machining angles. Compatible with Guangdong Taiji control software, it offers intelligent management tools such as machining process monitoring, equipment status diagnostics, and production efficiency analysis, helping customers achieve more efficient production operations.

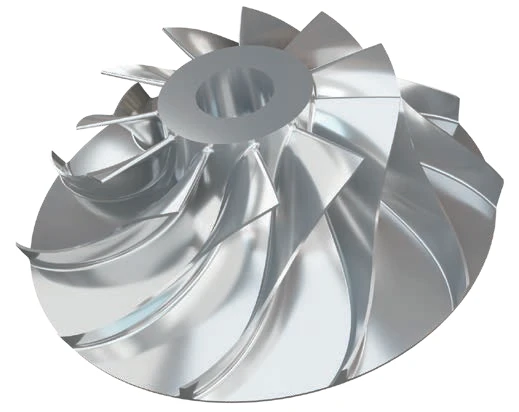

This TJ-UV380 5-Axis CNC Machining Center has applications in multiple fields. For example, in precision mold making, it's suitable for machining robot joints, robot dog parts, dexterous hands, orthopedic implants, and precision dental parts. Through five-axis linkage, it achieves one-time molding, significantly reducing subsequent polishing time and improving mold life and surface quality.

In the medical device field, it excels at manufacturing precision parts such as medical accessories and surgical instruments.High-precision five-axis linkage ensures consistency and smoothness of complex surfaces, fully meeting the high safety and reliability requirements of the medical industry.

Each This TJ-UV380 5-Axis CNC Machining Center's spindle box, motor mount, bearing mount, lead screw, and contact surfaces are made of high-rigidity cast iron and undergo secondary aging treatment to effectively eliminate internal stress and ensure the stability of the machine's accuracy. All key components are dual-calibrated by a precision coordinate grinder and a five-axis linkage measuring instrument. Our entire machine assembly is completed in a constant temperature and humidity workshop, and the entire process follows the ISO 9001 and GB/T 19001 quality management system standards.
