High Performance 5-axis Vertical Machining Center

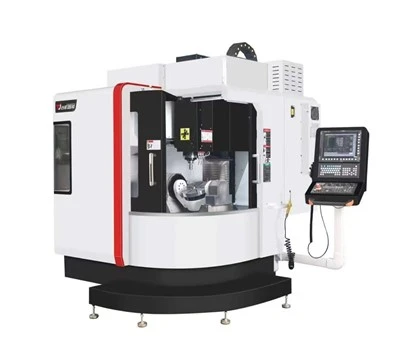

The TJ-UV410U is a High-Performance 5-Axis Vertical Machining Center, the flagship product of Guangdong Taiji's five-axis series, designed for high-precision five-axis simultaneous machining of large and complex parts. This model adopts an advanced five-axis linkage structure and a high-rigidity bed design, featuring high speed, high precision, high rigidity, and high reliability. It can operate continuously and stably with high precision under specified environmental conditions. It is mainly used for precision machining in the automotive, aerospace, power, and small-to-medium-sized mold industries, and is particularly suitable for high-precision, high-speed milling of parts with uneven weight.

We have equipped this TJ-UV410U High-Performance 5-Axis Vertical Machining Center with a large-diameter, high-precision rotary table, providing strong load-bearing capacity and stable indexing. The rotary and tilt axes utilize precision drive technology, resulting in smooth operation and fast response. For parts requiring five-axis simultaneous machining, such as impellers, blades, and large precision mold cavities, it can easily achieve normal machining of complex curved surfaces. Indexing accuracy and repeatability are at internationally advanced levels, ensuring reliable use in high-end manufacturing. Regarding processing efficiency, milling, drilling, boring, and tapping processes can be completed in a single setup, eliminating the hassle of changing equipment repeatedly and significantly shortening the production cycle. The standard large-capacity tool magazine allows for fast tool changes and short tool-to-tool time, naturally increasing batch production efficiency. One machine covers multiple processes, reducing both equipment investment and operating costs. Structurally, the high-rigidity bed, coupled with precision roller linear guides and C3+ grade ball screws, ensures long-term precision and stability. The five-axis linkage design reduces the number of setups, fundamentally avoiding positioning errors. Positioning accuracy and repeatability are both at the precision level, fully meeting the stringent requirements of aerospace and precision mold manufacturing. The control system uses a high-end controller from a leading brand, featuring a user-friendly interface, fast response, and support for high-speed, high-precision five-axis linkage machining. It can monitor the machining process in real time, diagnose equipment status, and analyze production efficiency, helping customers make production operations smarter and more efficient.

The TJ-UV410U High-Performance 5-Axis Vertical Machining Center excels in multiple high-end manufacturing fields. For aerospace components, it's suitable for machining small to medium-sized critical parts such as engine blades, integral bladed disks, and precision structural components, with typical dimensions not exceeding 400 mm.

Five-axis linkage in a single machining operation ensures the contour accuracy and surface quality of complex curved surfaces, meeting the stringent requirements of aerospace manufacturing for difficult-to-machine materials like titanium alloys and high-temperature alloys. Moving to energy equipment components, such as small gas turbine blades, turbine disks, and fuel nozzles, its high-rigidity structure provides excellent dimensional stability and machining efficiency, making it suitable for small-to-medium batch, high-precision production scenarios.

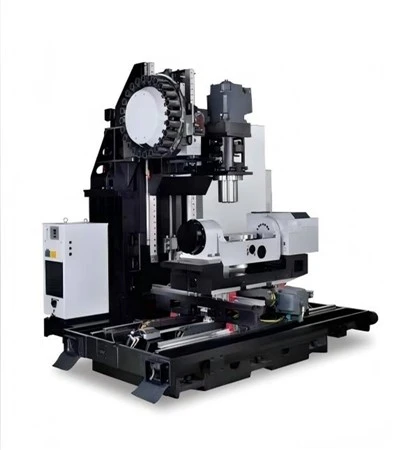

The machine tool base and column fixing components of Guangdong Taiji's TJ-UV410U High-Performance 5-Axis Vertical Machining Center are made of inorganic mineral casting materials. Compared to traditional cast iron materials, these materials offer superior vibration absorption, low coefficient of thermal expansion, low coefficient of thermal conductivity, excellent corrosion resistance, and low internal stress after room temperature casting and curing.

We are not only a machine tool manufacturer, but also a long-term partner committed to helping customers improve production efficiency and part quality. Every machine tool undergoes laser calibration and circularity testing before leaving the factory. This is not random sampling, but a mandatory process for each machine. Positioning accuracy is ±0.005 mm, and repeatability is ±0.003 mm. These figures aren't theoretical values from brochures; they represent the levels you can consistently achieve even when processing hundreds of parts daily in your factory. Whether you use our machine tools to create precision molds or aerospace components, you'll have complete peace of mind regarding dimensional consistency.
