Products Description

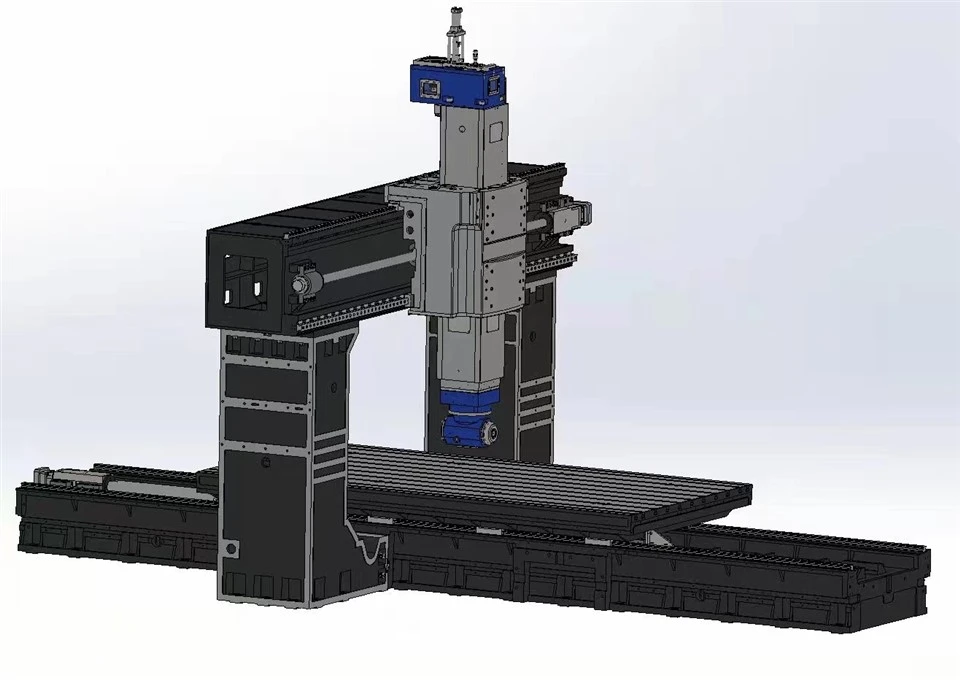

The Guangdong Taiji TJ-M4220 High-Precision 5-Axis Gantry Machining Center is specifically developed for the high-precision, high-efficiency heavy-duty cutting needs of ultra-large and complex parts. The entire machine adopts a one-piece cast bed, column, and beam, with internal reinforcing ribs to ensure excellent rigidity and stability even with ultra-large dimensions. The worktable measures 4000×2000mm, with an X-axis travel of 4200mm, easily accommodating aerospace structural components, core components of energy equipment, and ultra-large molds. Whether it's aircraft wing spars, rocket sections, wind turbine hubs, or nuclear power vessel flanges, this five-axis gantry provides a reliable solution for multi-faceted machining in a single setup.
Core Features and Technological Advantages
The core advantages of the TJ-M4220 High-Precision 5-Axis Gantry Machining Center lie in its ultra-large machining capacity and high flexibility. X-axis travel 4200mm, Y-axis 2700mm, Z-axis 1000mm (1250mm optional), gantry width 2450mm, worktable size 2000×4000mm, maximum load capacity up to 8 tons. The one-piece cast bed and reinforced structure ensure stability and reliability during heavy cutting. The spindle offers four configurations: A-type belt drive suitable for general machining; B-type all-gear drive with a torque of up to 807/1331 N.m, specifically designed for mold steel and cast iron; C-type standard with a 26/45kW high-power motor, with an optional HSK high-speed spindle; Z-type with a fully automatic right-angle head, completing five-sided machining in a single setup, significantly reducing machining time and improving production efficiency. The guideway system uses wide-width roller linear guides: two 55×25mm guideways each for the X/Y axes, and two 55×25mm guideways plus two 45×25mm guideways for the Z-axis, providing high rigidity and good vibration damping, eliminating concerns about machine stability. Equipped with the FANUC 0I-MF(3) system and a large-capacity tool magazine (24 tools standard, 40 optional), it offers fast tool changes and high precision, making it an ideal choice for aerospace, energy equipment, and ultra-large mold manufacturing.
Application Scenarios – TJ-M4220's Areas of Expertise
The TJ-M4220 High-Precision 5-Axis Gantry Machining Center is designed for batch processing of ultra-large and complex parts, covering the following core areas:
In aerospace: It can perform multi-face machining of titanium alloy and aluminum alloy structural parts such as aircraft wing spars and engine casings in a single setup, ensuring high precision on complex curved surfaces and meeting stringent aerospace manufacturing standards.
In energy equipment: With a 4200mm X-axis travel, it can perform heavy cutting on key components such as wind turbine hubs, nuclear power pressure vessel flanges, and gas turbine casings, completing roughing and finishing in one operation, significantly shortening the processing cycle.
In shipbuilding: It can perform multi-face machining of large parts such as marine engine cylinder blocks, propeller supports, and rudder structures in a single setup, reducing workpiece flipping and improving precision and efficiency. In heavy machinery applications: With a gantry width of 2450mm and a Z-axis travel of 1000mm, the TJ-M4220 can easily handle deep cavity machining and heavy cutting challenges, making it suitable for precision machining of large housings, frames, and other heavy components.
If your parts fall into the above categories and are within the size range, the TJ-M4220 can be put into production directly without repeated adjustments.
Reasons to Choose Guangdong Taiji
We understand that behind every machining center lies your continuous pursuit of efficiency, precision, and stability. Guangdong Taiji has accumulated decades of practical experience in aerospace, energy equipment, shipbuilding, and heavy machinery, enabling us to provide solutions that truly meet your product needs. The TJ-M4220 High-Precision 5-Axis Gantry Machining Center not only has the ability to complete five-sided machining of ultra-large parts in a single setup, but also integrates an advanced laser tool measurement system-capable of real-time measurement of tool diameter, wear, tool loading length, clearance length, and even tool breakage detection during high-speed rotation, automatically compensating for the machining process. This means you no longer need to frequently stop the machine for manual tool setting, ensuring reliable machining accuracy and efficiency. Whether you need customized spindle configurations, automated production line integration, or rely on our rapid-response global service network, the TJ-M4220 can be your reliable partner in tackling the challenges of heavy machining of large, complex parts. Contact us to let this machine bring tangible changes to your high-precision production.
Technical parameters
|
Items |
Unit |
TJ-M4220 |
|
X/Y/Z axis travel |
mm |
4200/2700/1000 |
|
X/Y/Z rapid moving speed |
m/min |
15 |
|
X/Y/Z positioning accuracy |
mm |
±0.005/300 |
|
X/Y/Z repositioning accuracy |
mm |
±0.003/300 |
|
Working table max load |
kg |
19000 |
|
Spindle table hole |
- |
BT50 |
|
Machine weight |
T |
32 |
|
Machine size (L/W/H) |
mm |
7800/6150/5200 |
