Products Description
The TJ-S500 High-Rigidity Horizontal Machining Center is a high-performance model designed by Guangdong Taiji specifically for the efficient batch processing of small and medium-sized precision parts. As a High-Rigidity Horizontal Machining Center, it adopts a unique moving column structure design and a full linear axis configuration, ensuring stability and accuracy during high-speed machining. Equipped with a FANUC controller and compatible with independently developed control software, it makes operation and management more convenient. Its compact footprint and powerful machining capabilities make it the ideal choice for manufacturers in the automotive parts, general machinery, and 3C communications industries.
Core Features and Technical Advantages

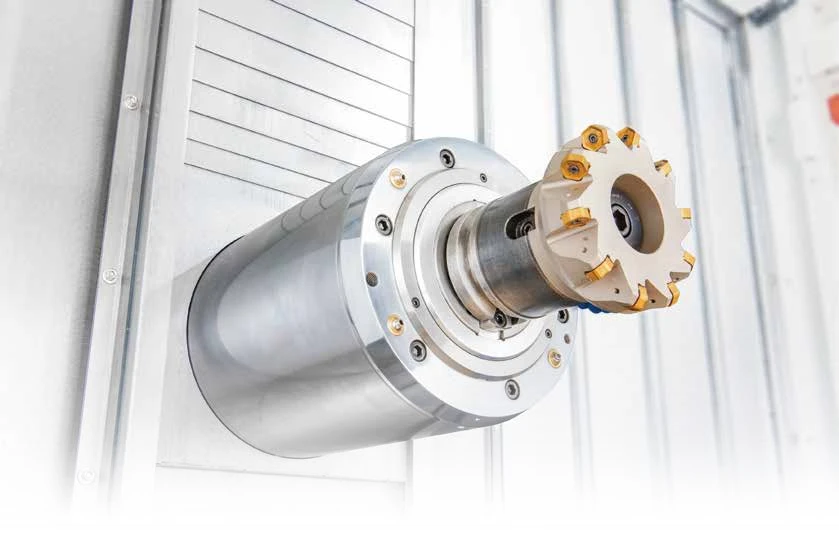

The TJ-S500 High-Rigidity Horizontal Machining Center adopts a moving column structure design, with a fixed worktable and a moving column, resulting in lightweight moving parts. Its high-rigidity symmetrical structure design provides excellent thermal flow balance, significantly improving the machine tool's structural stability and heavy-cutting capabilities. Meanwhile, the TJ-S500 High-Rigidity Horizontal Machining Center utilizes high-precision linear guides on its X/Y/Z axes, offering rapid response and high dynamic performance. With a maximum load capacity of 500kg, it can meet the diverse machining needs of small and medium-sized parts. Rapid traverse speeds exceed 36m/min, significantly reducing cutting and idle travel time, ensuring efficiency for your mass production. Our most popular high-efficiency chip removal system employs a spindle-mounted annular water jet and an optional top-mounted chip flushing device, allowing a powerful cutting water flow to quickly remove hot chips from the machining area, ensuring stable machining accuracy.
Our TJ-S500 comes standard with a BT40 arm-type tool magazine, enabling rapid tool changes, significantly reducing non-cutting time, and resulting in faster and smoother operation.
Application Scenarios – TJ-S500's Areas of Expertise
This TJ-S500 High-Rigidity Horizontal Machining Center can be used in multiple industries. For automotive parts, the mass production of components such as steering knuckles, differential housings, cylinder blocks and heads, crankshafts and connecting rods, motor housings, gearbox housings, and shock absorber towers relies on a combination of high rigidity and efficient tooling systems.
This ensures both processing efficiency and reliable dimensional stability. In the general machinery field, complex parts such as hydraulic components, valve bodies, housings, frame parts, gears, flanges, and hydraulic and transmission components in engineering machinery can all be mass-produced.
Its excellent chip removal performance allows chips to fall naturally downwards, significantly increasing equipment utilization during long-term continuous production. In the 3C electronics sector, for thin and light parts like precision casings, enclosures, and housings, high-speed spindles combined with precision structures can achieve high-gloss, high-precision surface finishes, perfectly meeting the market demands for thin, light, and aesthetically pleasing electronic products.
Furthermore, in precision mold making, the high-rigidity structure ensures the precision and surface quality of complex curved surfaces during the machining of cavities and inserts in small molds, reducing subsequent polishing time and extending mold life.
Quality Assurance and Manufacturing Standards
Guangdong Taiji's horizontal machine tool columns feature a thick-ribbed casting design, significantly enhancing structural rigidity and maintaining optimal precision even during prolonged heavy-duty machining.
Reasons to Choose Guangdong Taiji
We are not only a machine tool manufacturer but also a long-term partner committed to helping customers improve production efficiency and part quality. With decades of experience in CNC equipment development, we have numerous installation cases in mold processing, automotive parts, 3C electronics, medical devices, aerospace, and new energy fields. We have already solved the machining challenges you encounter for other clients. For example, a metal structural parts supplier for a well-known consumer electronics brand needed to mass-produce smartphone frames and smartwatch casings. They purchased six TJ-S500 machines from Guangdong Taiji and equipped them with automatic chip conveyors and central spindle cooling. Currently, these horizontal machining centers are operating 24/7 at a rate of tens of thousands of parts per month. Their special cutting fluid spraying system, combined with the structural advantages of horizontal machining, ensures a high-gloss finish on aluminum alloys. Compared to similar machining centers in the customer's factory, the Guangdong Taiji TJ-S500 achieves superior surface finish and reduces cycle time by approximately 15%, helping the customer successfully maintain sufficient production capacity during the peak season for consumer electronics. This experience cannot be compared simply by looking at specifications; it's a genuine ability to avoid pitfalls. We can also flexibly customize solutions based on your specific machining materials, spindle requirements, and automation configuration.
Technical parameters
|
Items |
Unit |
TJ-S500 |
|
X/Y/Z axis travel |
mm |
800/750/800 |
|
X/Y/Z rapid feeding speed |
m/min |
50/50/50 |
|
Workbench size(L×W) |
mm |
500x500 |
|
Working table max load |
kg |
600*2 |
|
Spindle table hole |
- |
7124 Taper No.50 |
|
Face width x depth x height |
mm |
4380/7220/3580 |
|
Weight approximately (single plate) |
T |
15.2 |
|
Weight approximately (Double discs) |
T |
17.8 |
