Linear Roller Way VMC

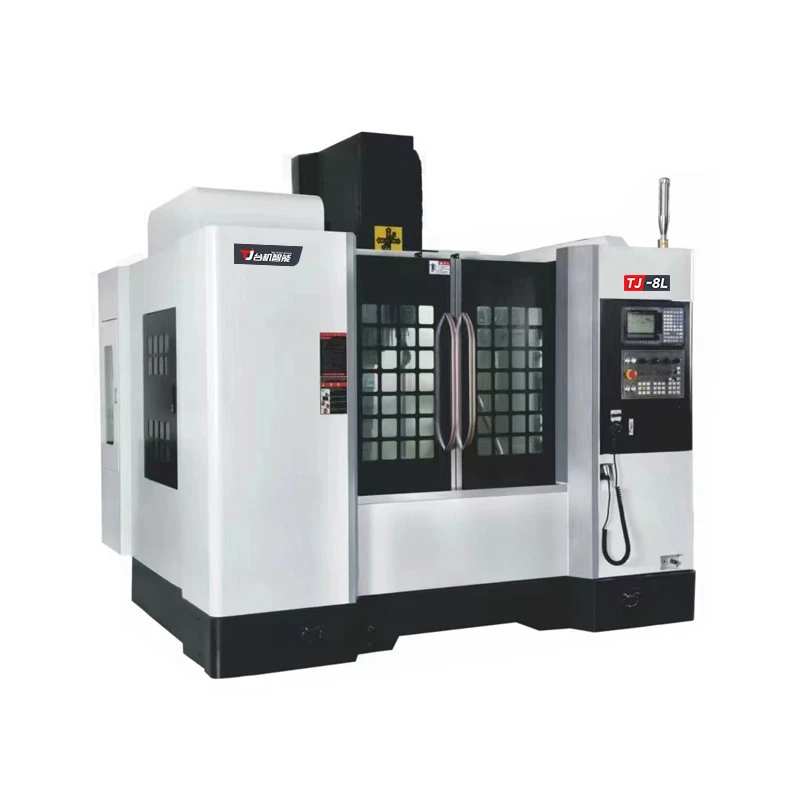

The TJ-8L Linear Roller Way VMC is a high-performance model designed by Guangdong Taiji specifically for the diversified machining of small and medium-sized precision parts. As a typical Linear Roller Way VMC, it adopts an innovative design with linear guides on the X/Y axes and a hardened rail on the Z axis. This design combines the high efficiency of a three-line guide machine with the ability to easily handle the heavy cutting demands of difficult-to-machine materials such as mold steel and cast iron. The ultra-wide base and ultra-large V-shaped column design ensure excellent stability during high-speed displacement, making it widely applicable in fields such as small molds, 3C electronics, and general mechanical precision parts.

Our TJ-8L Linear Roller Way VMC uses a two-line-one-hardened structure: linear guides for the X and Y axes provide fast response and good dynamics; while a hardened rail for the Z axis offers high rigidity, vibration absorption, and exceptional stability during heavy cutting, ensuring excellent circularity accuracy and cutting force. This allows for the efficient machining of various materials, from aluminum alloys to mold steel, truly achieving multi-purpose functionality. The distance from the spindle center to the guide rail surface is between 110 and 600 mm, and the distance from the end face to the worktable has also been optimized, allowing for easy hand access when clamping complex parts, making operation very convenient. Key components affecting machine tool quality are all imported from top-tier brands, with meticulous structural design and manufacturing processes, resulting in a low failure rate under high loads and guaranteed long-term stability. The precision ball screw adopts a double-nut design, with five ball bearings locked in the end support seats and pre-tensioned to compensate for the screw's thermal expansion error, ensuring the machine tool's thermal stability.

This machine tool demonstrates remarkable processing results in multiple small and medium-sized precision machining fields. For example, in small mold making, such as injection molds and die-casting mold cavities and inserts, thanks to its high rigidity and efficient tooling system, we can guarantee the accuracy and surface quality of complex curved surfaces, saving subsequent polishing time and naturally extending mold life.

In the 3C electronics and communications sector, precision components such as mobile phone casing molds, earphone molds, and connector molds, made with high-speed spindles and precision structures, can achieve high-gloss, high-precision results, perfectly meeting the market demands for thin, lightweight, and aesthetically pleasing electronic products.

Every TJ-8L Linear Roller Way VMC is manufactured under ISO 9001 quality management system certification.

All lubrication systems use volumetric distribution valves to ensure even oil supply to all lubrication points, maintaining good lubrication and extending service life. Every machine from Guangdong Taiji undergoes laser calibration, circularity testing, and continuous load testing, making it the best choice for processing your products and mold parts.

You need a new vertical machining center. But you've chosen the wrong guide type. The machine vibrates, damages tools, and ruins expensive parts. You lose both money and time.

For heavy-duty cutting, large molds, and hard materials, you must choose box-type rigid guides. They utilize sliding friction for maximum rigidity. For high-speed precision machining and light metal machining, you must choose linear guides. They utilize rolling friction for fast movement and ease of maintenance.

You want to increase the part cutting speed. But your machine's cutting intervals are too slow, resulting in wasted valuable machining cycle time and a reduced number of parts produced per day.

In fact, friction controls the machine's speed. Linear guides use small steel balls or rollers. These miniature rollers are located within modular metal blocks and roll smoothly along the guide. This rolling motion generates very little physical friction. The machine's servo motors don't need to exert effort to push the heavy worktable, allowing the machine to move quickly. Some high-speed machines can easily reach speeds of 60 meters per minute. Such high speeds facilitate the rapid manufacture of small electronic components, thus saving processing cycles. Hardened guideways operate on a completely different principle.

These machines use solid cast iron planes. These planes slide directly against each other, generating enormous sliding friction. High-speed sliding generates high temperatures, which cause the metal to expand, completely compromising positioning accuracy. To prevent overheating damage, hardened guideways must be operated slowly. Their speed rarely exceeds 15 meters per minute. You must select the appropriate guideway type based on your speed requirements. High-speed batch processing requires linear guideways, while low-speed roughing requires hardened guideways.
